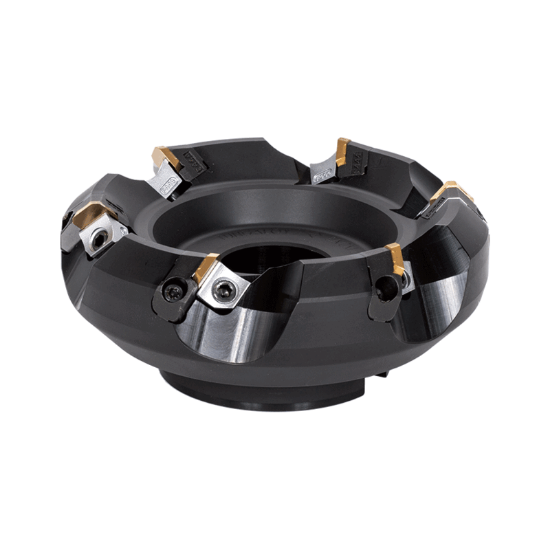

Picture of TUNGALOY TME4403RI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TME4403RI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TME4403RI

ISO: TME4403RI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808056
Delivery date: 3-5 days
$574.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 4
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.9960 101.50MM
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.1575
Cutting & Machining Properties
Seat/Nest 6805112
Coolant Thru No
Insert Style SE
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6809565
