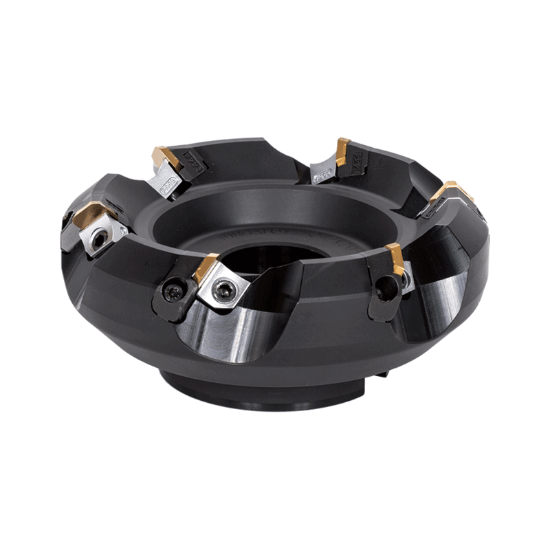

Picture of TUNGALOY TME4403LI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TME4403LI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TME4403LI

ISO: TME4403LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821329
Delivery date: 3-5 days
$574.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.9960 101.50MM
Depth Of Cut Max 0.1575
Insert Size Ic 12
Flutes/Inserts 4
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Insert Style SE
Seat/Nest 6848121
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6848123
Clamp Screw 6804584
Seat Screw 6801818
