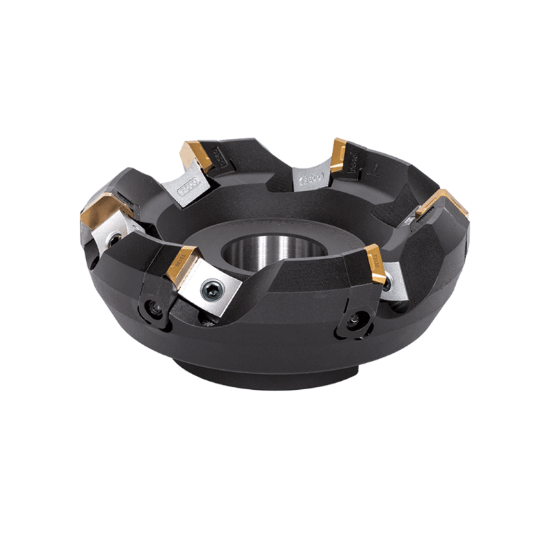

Picture of TUNGALOY TMD5410RI Milling Cutter 45.0° 9.843 Cutter Diameter Shell Arbor 1.8750 10 Flute

TUNGALOY TMD5410RI Milling Cutter 45.0° 9.843 Cutter Diameter Shell Arbor 1.8750 10 Flute

ANSI: TMD5410RI

ISO: TMD5410RI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808050
Delivery date: 3-5 days
$2,188.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Application Face Milling
Dimensional Specifications
Depth Of Cut Max 0.1575
Machine Side Connection Size 1.8750 47.63MM
Flutes/Inserts 10
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 9.4830 240.87MM
Cutter Dia 9.8430 250.01MM
Cut Dia Max 10.4330 265.00MM
Tool Material Steel
Insert Size Ic 53
Cutting & Machining Properties
Insert Style SD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6805096
Fasteners & Connectors
Clamp Screw 6804584
Seat Screw 6848125
Clamp/Wedge 6809567
