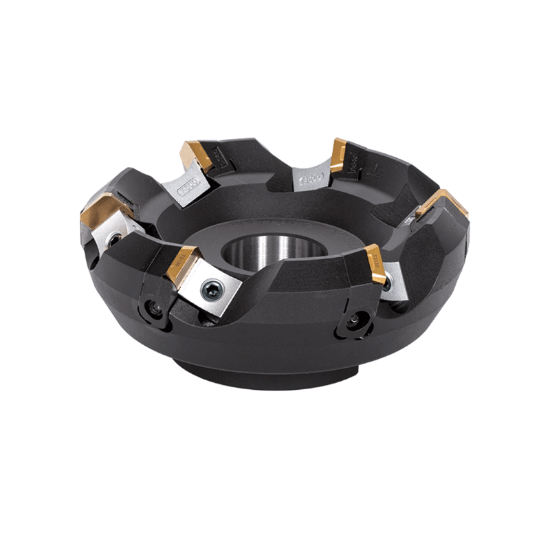

Picture of TUNGALOY TMD5404RI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 4 Flute

TUNGALOY TMD5404RI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 4 Flute

ANSI: TMD5404RI

ISO: TMD5404RI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808038
Delivery date: 3-5 days
$684.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Dimensional Specifications
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutter Dia 3.9370 100.00MM
Cut Dia Max 4.6560 118.26MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 4
Depth Of Cut Max 0.2362
Insert Size Ic 53
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SD
Hand R/L Right
Seat/Nest 6805096
Fasteners & Connectors
Seat Screw 6848125
Clamp/Wedge 6809567
Clamp Screw 6804584
