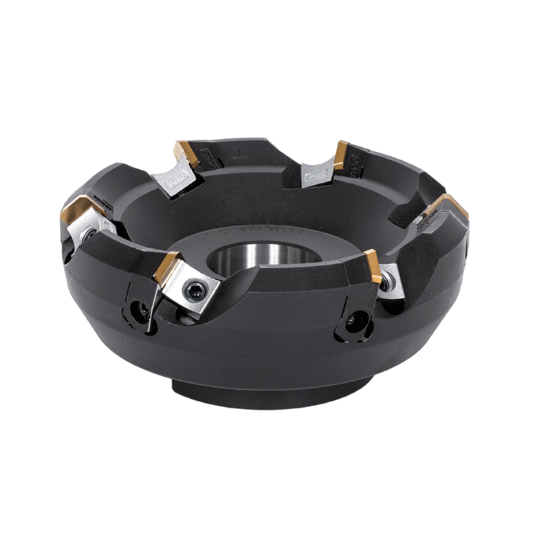

Picture of TUNGALOY TMD4410LI Milling Cutter 45.0° 9.843 Cutter Diameter Shell Arbor 1.8750 12 Flute

TUNGALOY TMD4410LI Milling Cutter 45.0° 9.843 Cutter Diameter Shell Arbor 1.8750 12 Flute

ANSI: TMD4410LI

ISO: TMD4410LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821328
Delivery date: 3-5 days
$2,057.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 9.4830 240.87MM
Cut Dia Max 10.3540 262.99MM
Insert Size Ic 12
Depth Of Cut Max 0.1575
Cutter Dia 9.8430 250.01MM
Machine Side Connection Size 1.8750 47.63MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 12
Cutting & Machining Properties
Coolant Thru No
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Seat/Nest 6805090
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6848124
