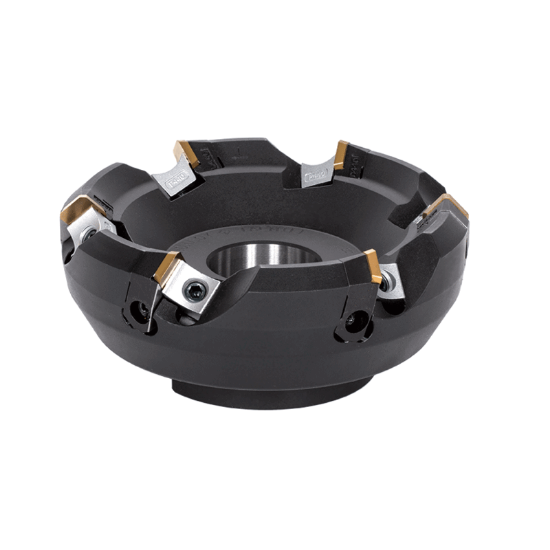

Picture of TUNGALOY TMD4408RI Milling Cutter 45.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

TUNGALOY TMD4408RI Milling Cutter 45.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

ANSI: TMD4408RI

ISO: TMD4408RI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808030
Delivery date: 3-5 days
$1,531.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1575
Machine Side Connection Size 1.8750 47.63MM
Cutter Dia 7.8740 200.00MM
Cut Dia Min 7.8740 200.00MM
Cut Dia Max 8.3860 213.00MM
Tool Material Steel
Flutes/Inserts 10
Insert Size Ic 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 6805091
Insert Style SD
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6809849
Seat Screw 6801818
Clamp Screw 6804584
