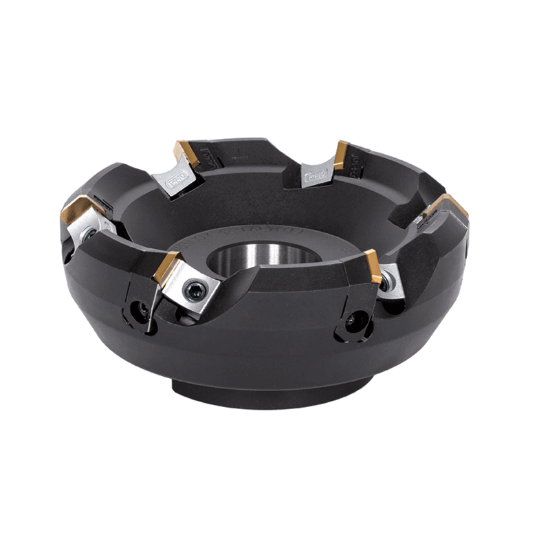

Picture of TUNGALOY TMD4408LI Milling Cutter 45.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

TUNGALOY TMD4408LI Milling Cutter 45.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

ANSI: TMD4408LI

ISO: TMD4408LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821327
Delivery date: 3-5 days
$1,531.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing, Finishing
Application Face Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.1575
Machine Side Connection Size 1.8750 47.63MM
Flutes/Inserts 10
Cut Dia Min 7.8740 200.00MM
Cut Dia Max 8.3860 213.00MM
Cutter Dia 7.8740 200.00MM
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Cutting & Machining Properties
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Seat/Nest 6805090
Coolant Thru No
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6848124
