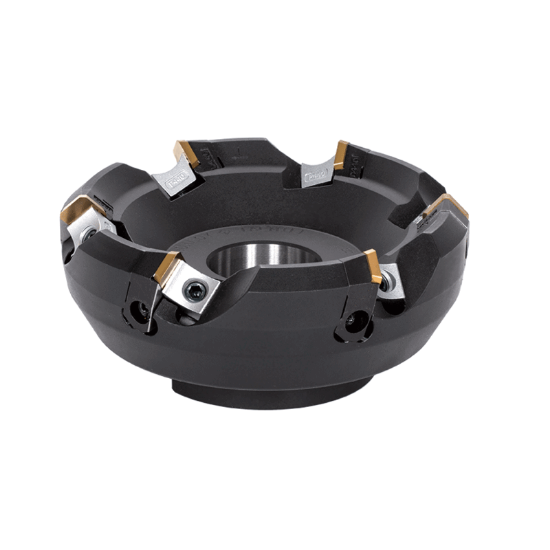

Picture of TUNGALOY TMD4405LI Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

TUNGALOY TMD4405LI Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 6 Flute

ANSI: TMD4405LI

ISO: TMD4405LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821325
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 5.4720 138.99MM
Tool Material Steel
Flutes/Inserts 6
Insert Size Ic 12
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Cutter Dia 4.9210 124.99MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.1575
Cutting & Machining Properties
Insert Style SD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Seat/Nest 6805090
Fasteners & Connectors
Clamp/Wedge 6848124
Clamp Screw 6804584
Seat Screw 6801818
