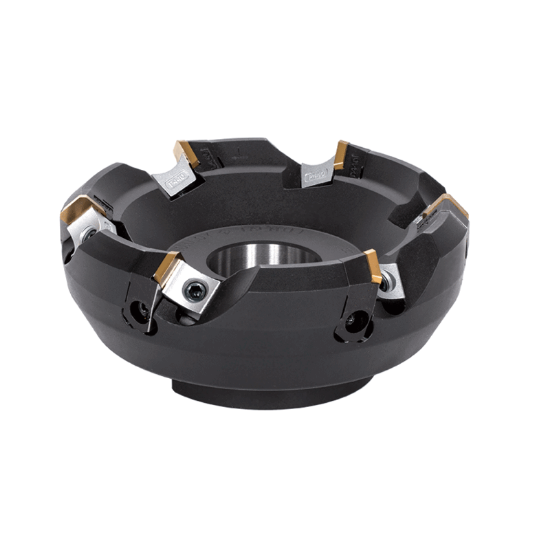

Picture of TUNGALOY TMD4404RI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

TUNGALOY TMD4404RI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

ANSI: TMD4404RI

ISO: TMD4404RI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6808017
Delivery date: 3-5 days
$712.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.1575
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.9370 100.00MM
Cut Dia Max 4.5280 115.01MM
Flutes/Inserts 5
Cutter Dia 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style SD
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 6805091
Fasteners & Connectors
Seat Screw 6801818
Clamp Screw 6804584
Clamp/Wedge 6809849
