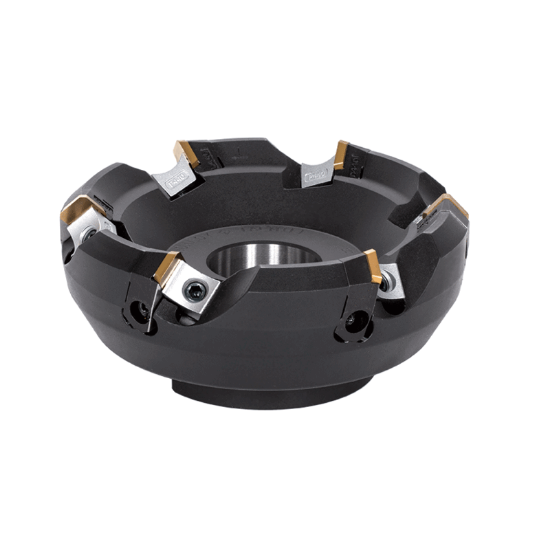

Picture of TUNGALOY TMD4404LI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

TUNGALOY TMD4404LI Milling Cutter 45.0° 3.937 Cutter Diameter Shell Arbor 1.2500 5 Flute

ANSI: TMD4404LI

ISO: TMD4404LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821324
Delivery date: 3-5 days
$712.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 3.9370 100.00MM
Cut Dia Max 4.5280 115.01MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.1575
Insert Size Ic 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Seat/Nest 6805090
Insert Style SD
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6848124
Seat Screw 6801818
Clamp Screw 6804584
