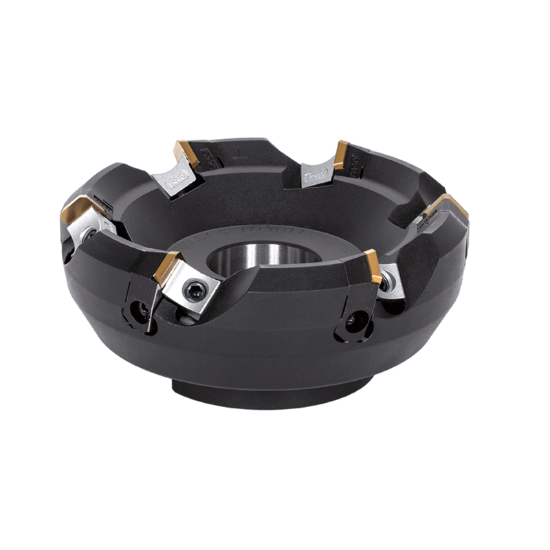

Picture of TUNGALOY TMD4403LI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY TMD4403LI Milling Cutter 45.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: TMD4403LI

ISO: TMD4403LI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821323
Delivery date: 3-5 days
$574.65
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.1575
Insert Size Ic 12
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.7800 96.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Style SD
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Seat/Nest 6805090
Fasteners & Connectors
Clamp/Wedge 6848124
Seat Screw 6801818
Clamp Screw 6804584
