  • TUNGALOY TLM11R200U0075A03 Milling Cutter 90.0°, Corn Cob 2.000 Cutter Diameter Weldon 0.7500 2.750 OAL 21 Flute

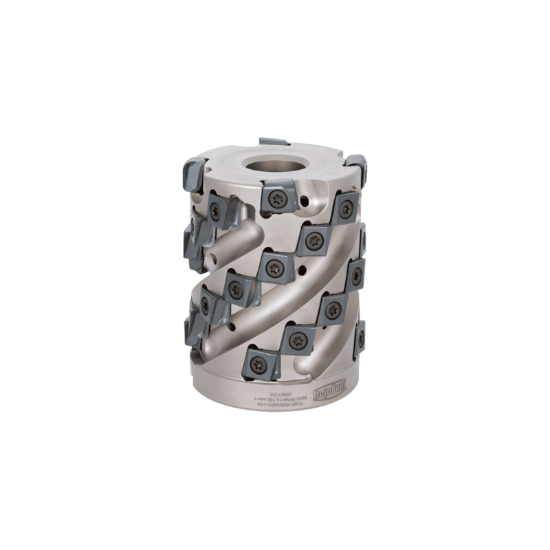

Picture of TUNGALOY TLM11R200U0075A03 Milling Cutter 90.0°, Corn Cob 2.000 Cutter Diameter Weldon 0.7500 2.750 OAL 21 Flute

TUNGALOY TLM11R200U0075A03 Milling Cutter 90.0°, Corn Cob 2.000 Cutter Diameter Weldon 0.7500 2.750 OAL 21 Flute

ANSI: TLM11R200U0075A03

ISO: TLM11R200U0075A03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6888783
Delivery date: 3-5 days
$1,272.60
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 2.6340
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 21
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.7500 69.85MM
Insert Size Ic 11
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
Insert Style LN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
