  • TUNGALOY TLBNR24-24 Stick Tool On Edge Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

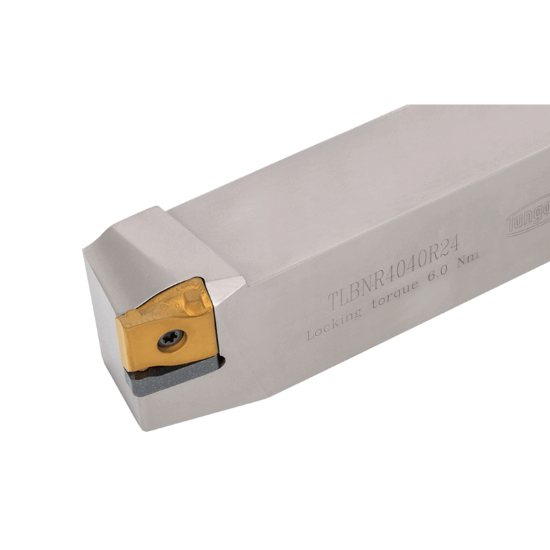

Picture of TUNGALOY TLBNR24-24 Stick Tool On Edge Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

TUNGALOY TLBNR24-24 Stick Tool On Edge Insert Neg,B/R style, 75deg Approach , Steel Square 1.500 Shank

ANSI: TLBNR24-24

ISO: TLBNR24-24

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6865643
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Neg,B/R style, 75deg Approach

Details

Screw-on clamp toolholder with tangential insert for roughing operation with 75deg approach angle

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 24
Overall Len 7.8740 200.00MM
Lead Angle 75°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Rectagonal
Inter/Extern External
Insert Style LN
Hand R/L Right
