  • TUNGALOY TLA15R400L110A05S Milling Cutter 90.0°, Corn Cob 4.000 Cutter Diameter TUNCAP1 1.102 OAL 10 Flute

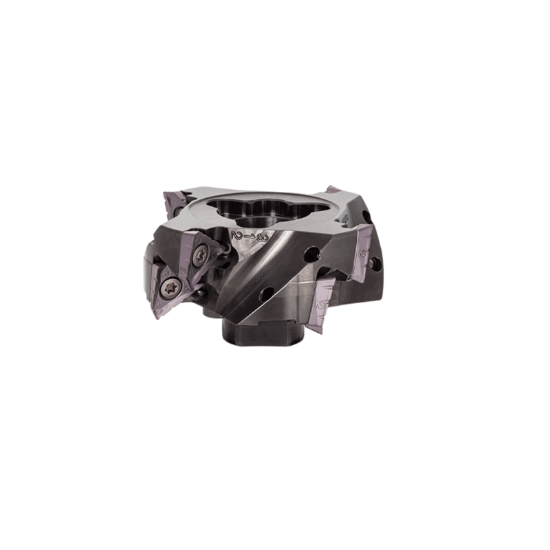

Picture of TUNGALOY TLA15R400L110A05S Milling Cutter 90.0°, Corn Cob 4.000 Cutter Diameter TUNCAP1 1.102 OAL 10 Flute

TUNGALOY TLA15R400L110A05S Milling Cutter 90.0°, Corn Cob 4.000 Cutter Diameter TUNCAP1 1.102 OAL 10 Flute

ANSI: TLA15R400L110A05S

ISO: TLA15R400L110A05S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6729158
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Illinois
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Insert Application Roughing
Package Size 1
Dimensional Specifications
Cut Dia Min 4.0000 101.60MM
Overall Len 1.1020 27.99MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 10
Insert Size Ic 10
Depth Of Cut Max 0.4331
Tool Material Steel
Cutter Dia 4.0000 101.60MM
Machine Side Connection Size 1.2990 32.99MM
Shank/Pilot Dia 1.2990 32.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4352056
