  • TUNGALOY TLA15R300L275U0125A04M Milling Cutter 90.0°, Corn Cob 3.000 Cutter Diameter Shell Arbor 1.2500 3.940 OAL 20 Flute

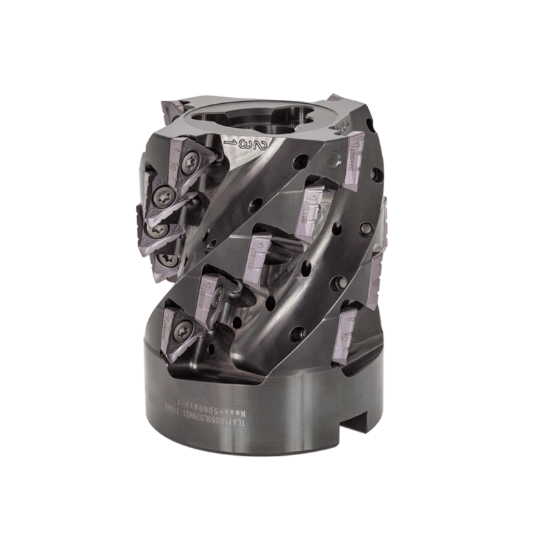

Picture of TUNGALOY TLA15R300L275U0125A04M Milling Cutter 90.0°, Corn Cob 3.000 Cutter Diameter Shell Arbor 1.2500 3.940 OAL 20 Flute

TUNGALOY TLA15R300L275U0125A04M Milling Cutter 90.0°, Corn Cob 3.000 Cutter Diameter Shell Arbor 1.2500 3.940 OAL 20 Flute

ANSI: TLA15R300L275U0125A04M

ISO: TLA15R300L275U0125A04M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6729155
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Application Roughing
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 20
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 10
Depth Of Cut Max 3.2680
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Style TO
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 4352056
