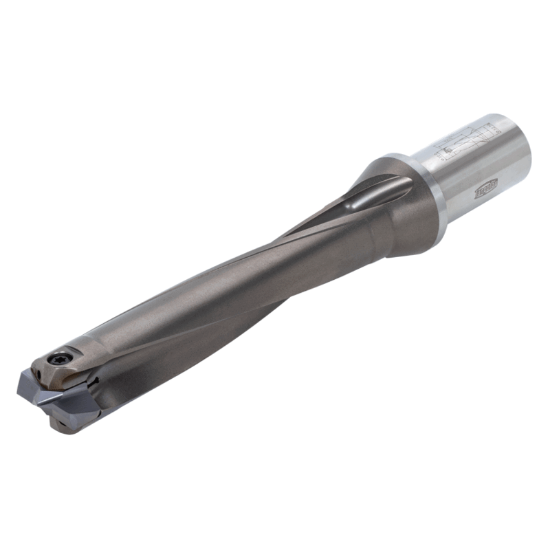

TUNGALOY TISU1260F1500-5 1.26" Drill ForceMeister TIS L/D=5 Indexable head Drill

ISO: TISU1260F1500-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6168041
Delivery date: 3-5 days
$805.70

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.2598 32.00MM
Cut Dia Max 1.2950 32.89MM
Dia Deep 5.0XD
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Overall Len 10.8270 275.01MM
Included Angle 140°
Machine Side Connection Type Boring Bar,Weldon
Flute Length 6.5280 165.81MM
Cut Dia Min 1.2598 32.00MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
