  • TUNGALOY TIS260F32-3 26mm Drill ForceMeister TIS L/D=3 Indexable head Drill

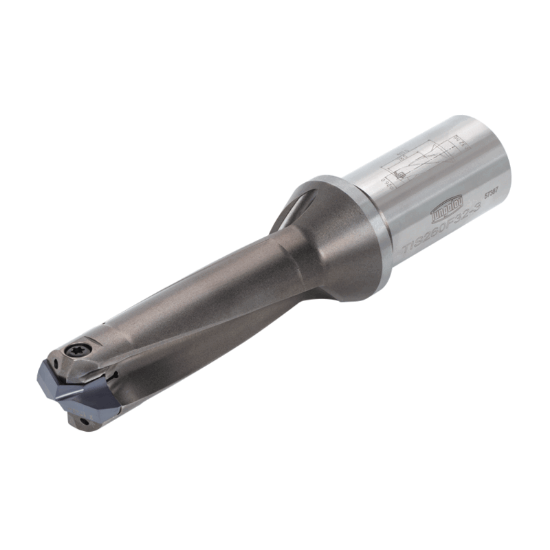

Picture of TUNGALOY TIS260F32-3 26mm Drill ForceMeister TIS L/D=3 Indexable head Drill

TUNGALOY TIS260F32-3 26mm Drill ForceMeister TIS L/D=3 Indexable head Drill

ISO: TIS260F32-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6167995
Delivery date: 3-5 days
$631.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 6.9685 177.00MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cut Dia Min 1.0240 26.01MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Included Angle 140°
Cut Dia Max 1.0591 26.90MM
Tool Material Steel
Flute Length 3.2560 82.70MM
Cutter Dia 1.0240 26.01MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Medical Yes
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
