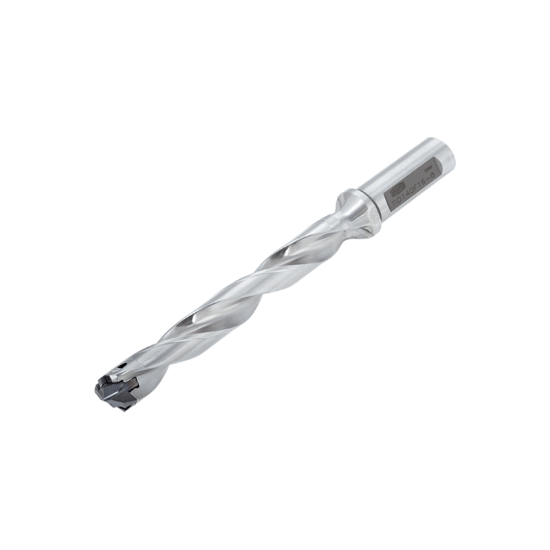

TUNGALOY TIDU0984F1250-8 0.984" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0984F1250-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723457
Delivery date: 3-5 days
$894.35

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.9843 25.00MM - 63/64
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 8.0XD
Cutter Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Flute Length 8.0530 204.55MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 11.7910 299.49MM
Included Angle 136°
Cut Dia Max 1.0200 25.91MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
