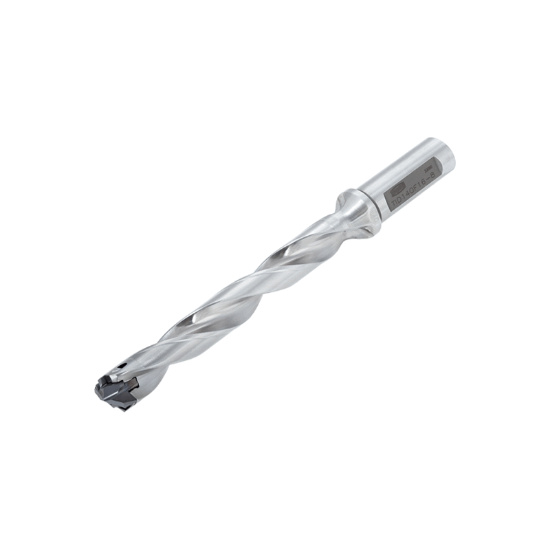

Picture of TUNGALOY TIDU0945F1250-8 0.945" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0945F1250-8 0.945" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0945F1250-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723453
Delivery date: 3-5 days
$798.40

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Insert Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Included Angle 136°
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 11.4130 289.89MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.9449 24.00MM
Cut Dia Min 0.9449 24.00MM
Flutes/Inserts 2
Dia Deep 8.0XD
Flute Length 7.7310 196.37MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 0.9800 24.89MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
