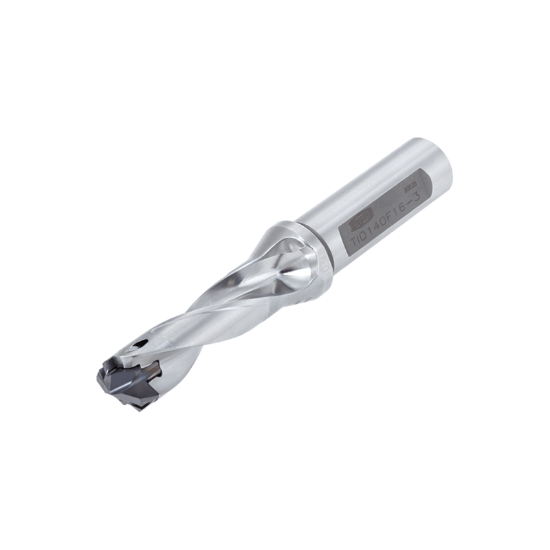

Picture of TUNGALOY TIDU0945F1250-3 0.945" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0945F1250-3 0.945" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0945F1250-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723451
Delivery date: 3-5 days
$563.45

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.9449 24.00MM
Overall Len 6.6890 169.90MM
Flutes/Inserts 2
Included Angle 136°
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Flute Length 3.0070 76.38MM
Dia Deep 3.0XD
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 0.9800 24.89MM
Cutter Dia 0.9449 24.00MM
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
