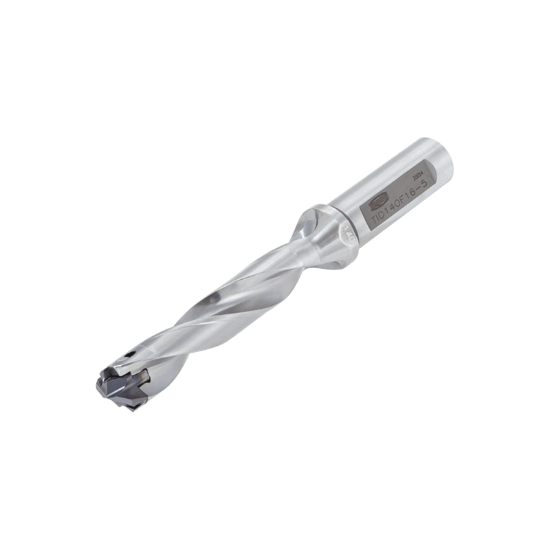

Picture of TUNGALOY TIDU0748F1000-5 0.748" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0748F1000-5 0.748" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0748F1000-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6706825
Delivery date: 3-5 days
$503.20

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.7480 19.00MM
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Flute Length 3.8760 98.45MM
Cutter Dia 0.7480 19.00MM
Overall Len 7.1260 181.00MM
Flutes/Inserts 2
Tool Material Steel
Included Angle 136°
Cut Dia Max 0.7830 19.89MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
