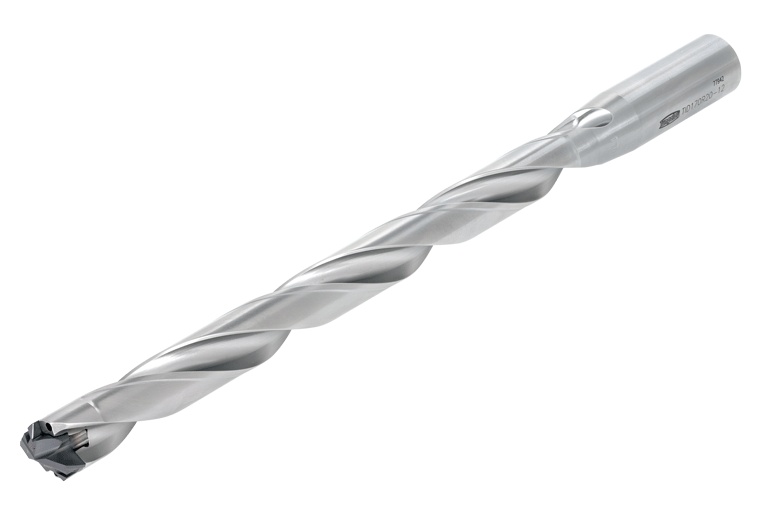

Picture of Tungaloy TIDU0709R1000-12 0.709" DrillMeister Indexable Head Drill with cylindrical Shank

Tungaloy TIDU0709R1000-12 0.709" DrillMeister Indexable Head Drill with cylindrical Shank

Part Number: TUN6754752 ISO: TIDU0709R1000-12
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1130932
Vendor: Sussex Tool and Supply
$680.55

Description

TUNGALOY TUN6754752 Indexable Drill Dia1.0000 0.7087 18.00MM Cutter Dia Flute Length 8.6330 219.28MM Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Multi Spindle Yes
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7087 18.00MM
Flute Length 8.6330 219.28MM
Geometry & Angles
Included Angle 136°
Performance & Capacity
Cut Dia Min 0.7087 18.00MM
Cut Dia Max 0.7440 18.90MM
Materials & Finish
Tool Material Steel
