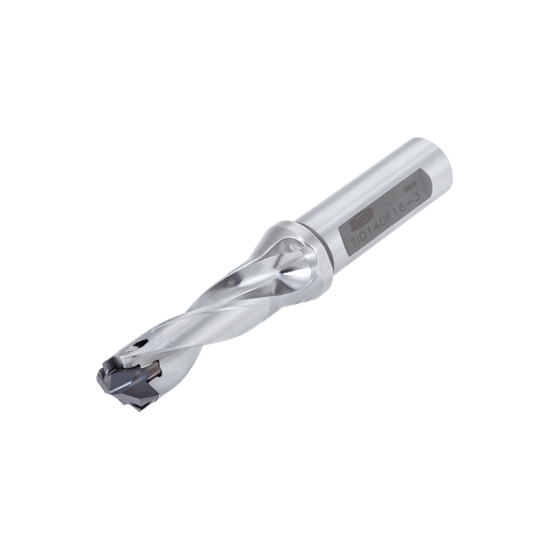

Picture of TUNGALOY TIDU0630F0750-3 0.63" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0630F0750-3 0.63" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0630F0750-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6706807
Delivery date: 3-5 days
$326.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.6650 16.89MM
Dia Deep 3.0XD
Flute Length 2.0050 50.93MM
Overall Len 4.8540 123.29MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 0.6299 16.00MM
Included Angle 136°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
