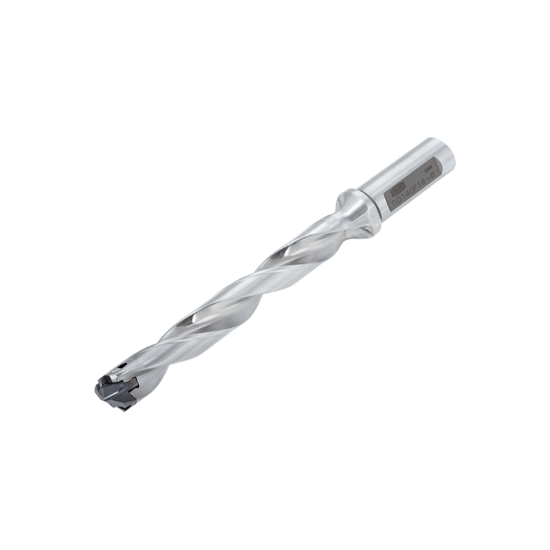

Picture of TUNGALOY TIDU0591F0750-8 0.591" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0591F0750-8 0.591" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0591F0750-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863737
Delivery date: 3-5 days
$457.65

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Insert Drilling, Single Insert Drilling
Package Size 1
Dimensional Specifications
Overall Len 7.6260 193.70MM
Dia Deep 8.0XD
Flutes/Inserts 2
Cut Dia Min 0.5906 15.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Included Angle 136°
Cutter Dia 0.5906 15.00MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 4.8320 122.73MM
Cut Dia Max 0.6260 15.90MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
