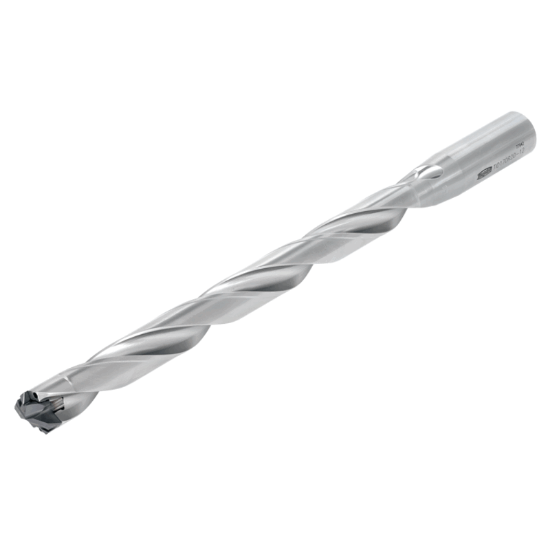

Picture of TUNGALOY TIDU0571R0625-12 0.571" Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TIDU0571R0625-12 0.571" Drill Meister Indexable head Drill with cylindrical Shank

ISO: TIDU0571R0625-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6754748
Delivery date: 3-5 days
$484.75

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 9.5280 242.01MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Dia Max 0.5870 14.91MM
Included Angle 136°
Flute Length 6.9540 176.63MM
Tool Material Steel
Cutter Dia 0.5709 14.50MM
Cut Dia Min 0.5709 14.50MM
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Mold Yes
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
