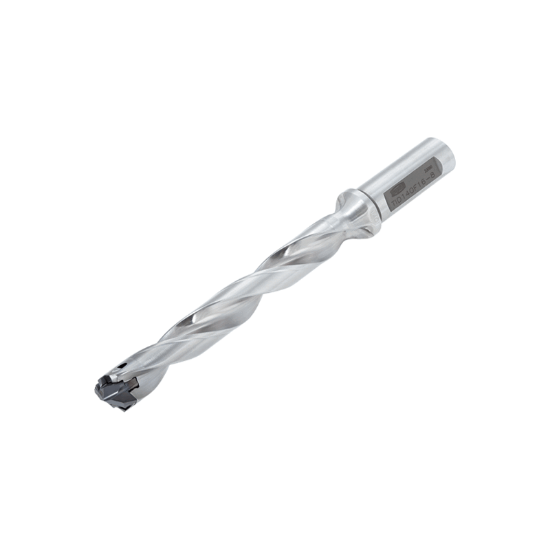

Picture of TUNGALOY TIDU0512F0625-8 0.512" Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TIDU0512F0625-8 0.512" Drill Meister Indexable head Drill with flanged Shank

ISO: TIDU0512F0625-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6863690
Delivery date: 3-5 days
$431.85

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Insert Drilling, Single Insert Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Dia Deep 8.0XD
Cut Dia Max 0.5280 13.41MM
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.5118 13.00MM
Overall Len 6.6770 169.60MM
Flute Length 4.1870 106.35MM
Included Angle 136°
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
Multi Spindle Yes
Aerospace Yes
Mold Yes
