Picture of TUNGALOY TIDC140C14-3 0.5512" Drill Meister TIDC L/D=3 Indexable head Drill s

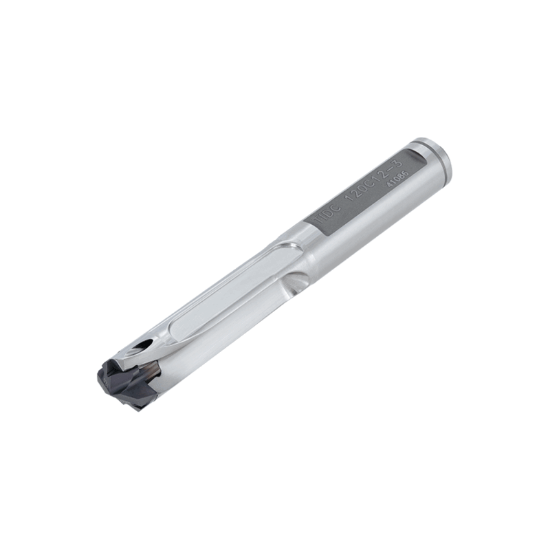

TUNGALOY TIDC140C14-3 0.5512" Drill Meister TIDC L/D=3 Indexable head Drill s

ISO: TIDC140C14-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6877851
Delivery date: 3-5 days
$260.90

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5512 14.00MM
Overall Len 4.0550 103.00MM
Flutes/Inserts 2
Cutter Dia 0.5512 14.00MM
Tool Material Steel
Shank/Pilot Dia 0.5512 14.00MM
Included Angle 136°
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Machine Side Connection Size 0.5512 14.00MM
Flute Length 1.7720 45.01MM
Cut Dia Max 0.5669 14.40MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
