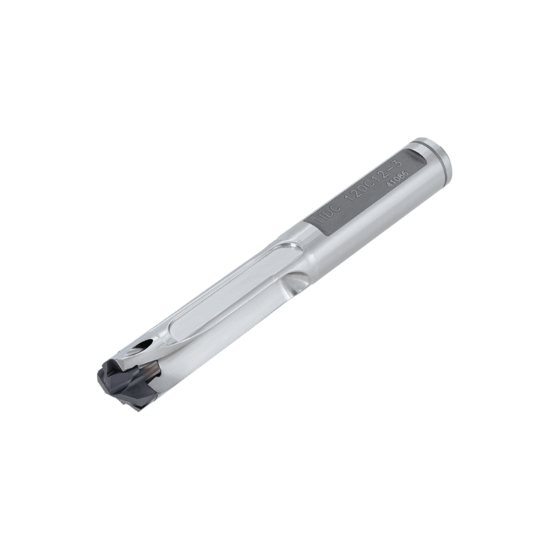

Picture of TUNGALOY TIDC135C14-3 0.5315" Drill Meister TIDC L/D=3 Indexable head Drill s

TUNGALOY TIDC135C14-3 0.5315" Drill Meister TIDC L/D=3 Indexable head Drill s

ISO: TIDC135C14-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862651
Delivery date: 3-5 days
$260.90

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 0.5472 13.90MM
Dia Deep 3.0XD
Flute Length 1.6930 43.00MM
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.5512 14.00MM
Overall Len 3.9300 99.82MM
Included Angle 136°
Cut Dia Min 0.5312 13.49MM - 17/32
Cutter Dia 0.5313 13.50MM - 17/32
Flutes/Inserts 2
Machine Side Connection Size 0.5512 14.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Multi Spindle Yes
