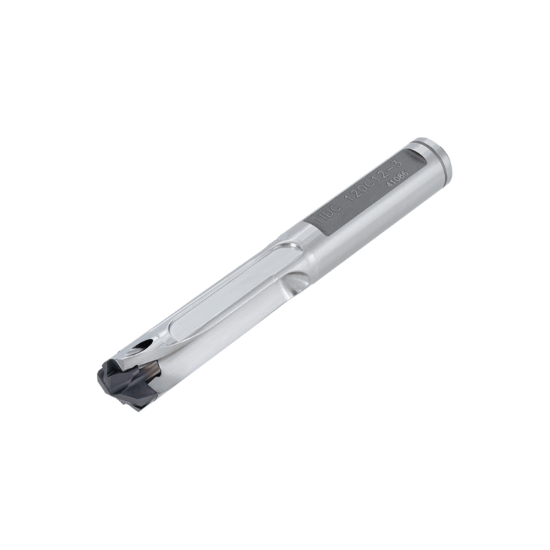

Picture of TUNGALOY TIDC125C13-3 0.4921" Drill Meister TIDC L/D=3 Indexable head Drill s

TUNGALOY TIDC125C13-3 0.4921" Drill Meister TIDC L/D=3 Indexable head Drill s

ISO: TIDC125C13-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862644
Delivery date: 3-5 days
$260.90

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5118 13.00MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Machine Side Connection Size 0.5118 13.00MM
Overall Len 3.8700 98.30MM
Flute Length 1.5750 40.01MM
Cutter Dia 0.4921 12.50MM
Included Angle 136°
Flutes/Inserts 2
Cut Dia Min 0.4921 12.50MM
Cut Dia Max 0.5079 12.90MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
