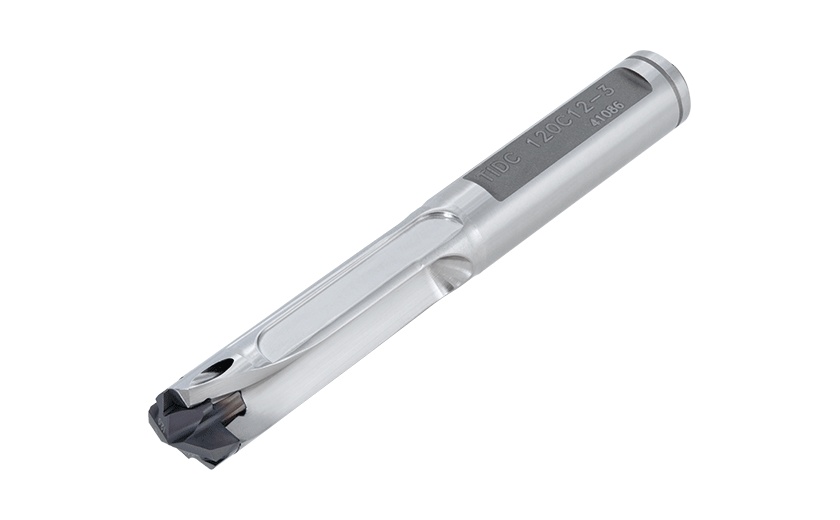

Picture of Tungaloy TIDC090C9-3 0.3543" DrillMeister TIDC L/D=3 Indexable Head Drills

Tungaloy TIDC090C9-3 0.3543" DrillMeister TIDC L/D=3 Indexable Head Drills

Part Number: TUN6788642 ISO: TIDC090C9-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131182
Vendor: Sussex Tool and Supply
$213.62
TUNGALOY TUN6788642 Indexable Drill Dia0.3543 0.3543 9.00MM Cutter Dia Flute Length 1.0630 27.00MM Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3543 9.00MM
Overall Length 2.9410 74.70MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Tool Dia 0.3543 9.00MM
Type Of Tool Drill
Included Angle 136°
Flute Length 1.0630 27.00MM
Cut Dia Min 0.3543 9.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3701 9.40MM
Multi Spindle Yes
