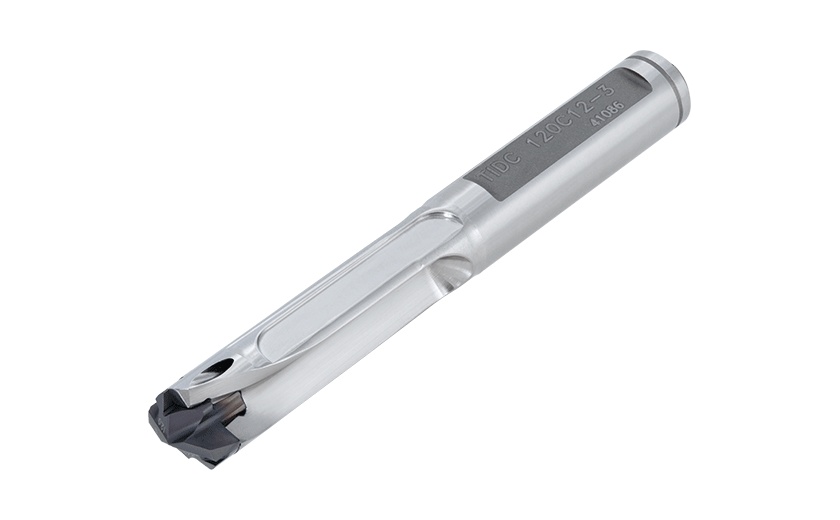

Picture of Tungaloy TIDC075C8-3 0.2953" DrillMeister TIDC L/D=3 Indexable Head Drills

Tungaloy TIDC075C8-3 0.2953" DrillMeister TIDC L/D=3 Indexable Head Drills

Part Number: TUN6788639 ISO: TIDC075C8-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: 1131179
Vendor: Sussex Tool and Supply
$213.62
TUNGALOY TUN6788639 Indexable Drill Dia0.3150 0.2953 7.50MM Cutter Dia Flute Length 0.9060 23.01MM Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.7600 70.10MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2953 7.50MM
Type Of Tool Drill
Included Angle 136°
Flute Length 0.9060 23.01MM
Cut Dia Min 0.2953 7.50MM - M
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.3110 7.90MM
Multi Spindle Yes
