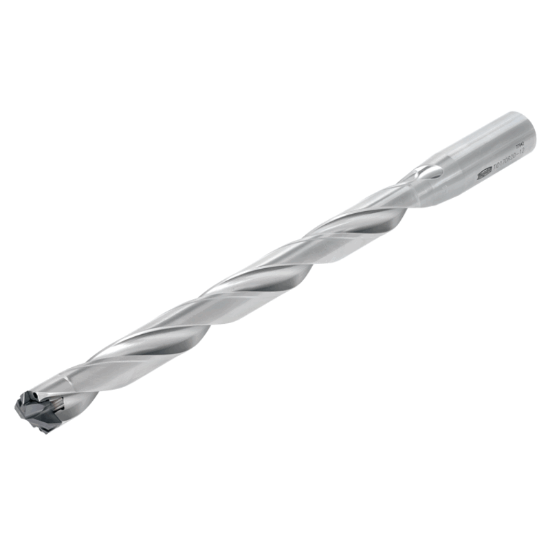

Picture of TUNGALOY TID220R25-12 22mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID220R25-12 22mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID220R25-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6174371
Delivery date: 3-5 days
$814.35

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Insert Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 13.9685 354.80MM
Flute Length 10.5120 267.00MM
Cut Dia Min 0.8661 22.00MM
Flutes/Inserts 2
Cutter Dia 0.8661 22.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.9016 22.90MM
Included Angle 136°
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
