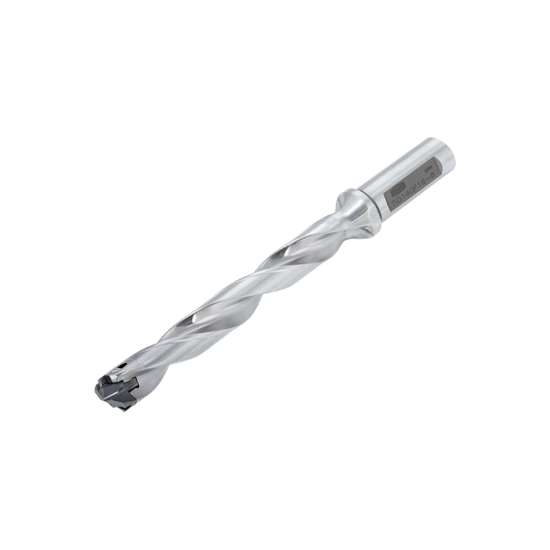

Picture of TUNGALOY TID210F25-8 21mm Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TID210F25-8 21mm Drill Meister Indexable head Drill with flanged Shank

ISO: TID210F25-8

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723417
Delivery date: 3-5 days
$725.80

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Insert Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 10.1260 257.20MM
Cutter Dia 0.8268 21.00MM
Included Angle 136°
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Dia Deep 8.0XD
Cut Dia Max 0.8622 21.90MM
Flute Length 6.7720 172.01MM
Cut Dia Min 0.8268 21.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Automotive Yes
Multi Spindle Yes
