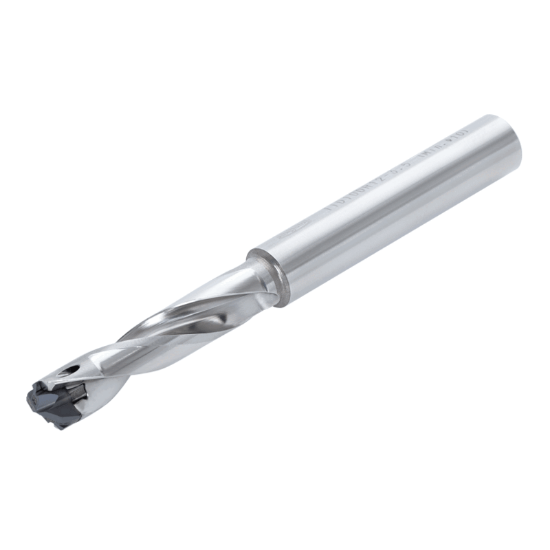

Picture of TUNGALOY TID190R20-3.5 19mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID190R20-3.5 19mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID190R20-3.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6778763
Delivery date: 3-5 days
$382.65

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Dia Deep 3.5XD
Included Angle 136°
Cut Dia Max 0.7835 19.90MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.7874 20.00MM
Overall Len 6.6300 168.40MM
Cutter Dia 0.7480 19.00MM
Flutes/Inserts 2
Tool Material Steel
Cut Dia Min 0.7480 19.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
