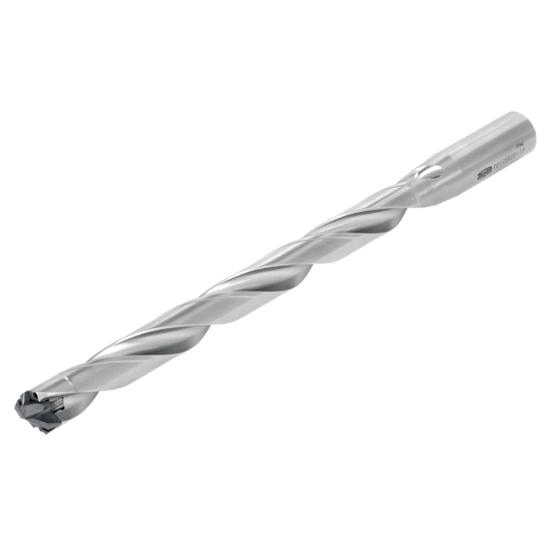

Picture of TUNGALOY TID135R16-12 13.5mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID135R16-12 13.5mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID135R16-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6174341
Delivery date: 3-5 days
$484.75

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Flute Length 6.4960 165.00MM
Overall Len 8.9606 227.60MM
Cutter Dia 0.5315 13.50MM
Machine Side Connection Size 0.6299 16.00MM
Included Angle 136°
Tool Material Steel
Cut Dia Min 0.5315 13.50MM
Cut Dia Max 0.5472 13.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
