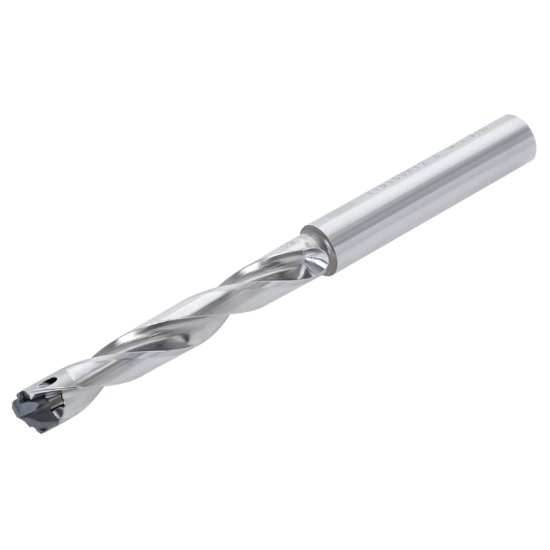

Picture of TUNGALOY TID135R14-6 13.5mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID135R14-6 13.5mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID135R14-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6784612
Delivery date: 3-5 days
$322.40

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.5512 14.00MM
Cut Dia Max 0.5472 13.90MM
Cutter Dia 0.5313 13.50MM - 17/32
Flutes/Inserts 2
Dia Deep 6.0XD
Machine Side Connection Size 0.5512 14.00MM
Cut Dia Min 0.5312 13.49MM - 17/32
Overall Len 6.6614 169.20MM
Tool Material Steel
Included Angle 136°
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
