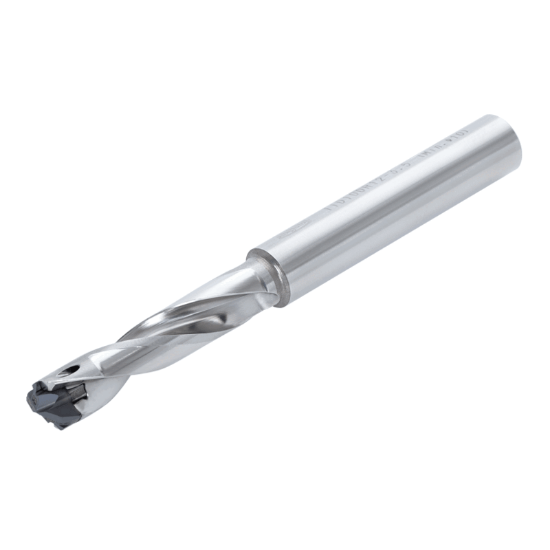

Picture of TUNGALOY TID125R14-3.5 12.5mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID125R14-3.5 12.5mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID125R14-3.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6784590
Delivery date: 3-5 days
$271.90

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Single Insert Drilling, Insert Drilling
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Max 0.5079 12.90MM
Tool Material Steel
Cut Dia Min 0.4921 12.50MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.5512 14.00MM
Machine Side Connection Size 0.5512 14.00MM
Overall Len 5.0709 128.80MM
Cutter Dia 0.4921 12.50MM
Dia Deep 3.5XD
Included Angle 136°
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Medical Yes
Energy Yes
