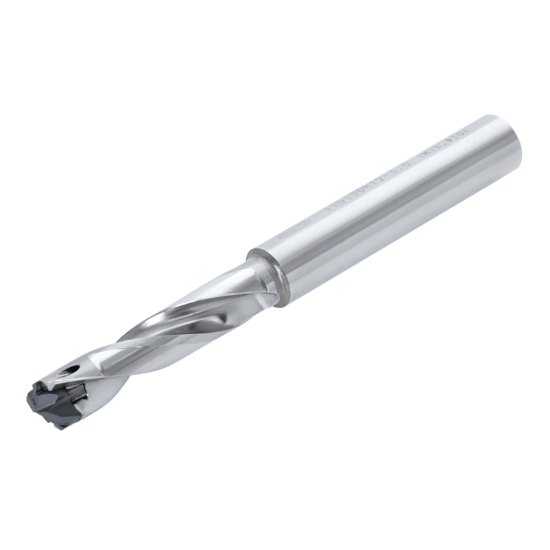

Picture of TUNGALOY TID100R12-3.5 10mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID100R12-3.5 10mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID100R12-3.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6778762
Delivery date: 3-5 days
$248.60

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Overall Len 4.4882 114.00MM
Dia Deep 3.5XD
Included Angle 136°
Cut Dia Min 0.3937 10.00MM
Cut Dia Max 0.4094 10.40MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
