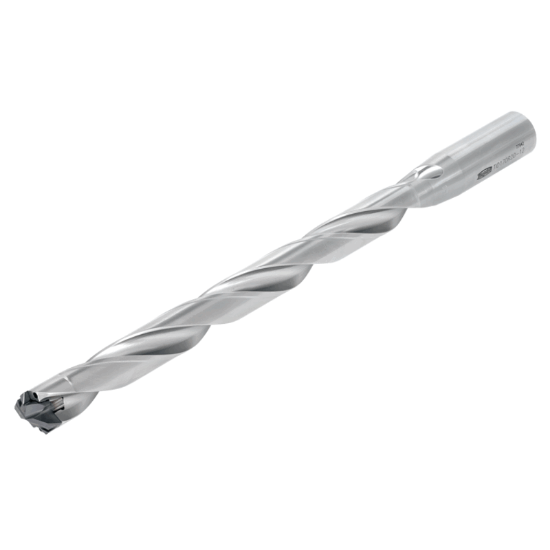

Picture of TUNGALOY TID095R12-12 9.5mm Drill Meister Indexable head Drill with cylindrical Shank

TUNGALOY TID095R12-12 9.5mm Drill Meister Indexable head Drill with cylindrical Shank

ISO: TID095R12-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6785550
Delivery date: 3-5 days
$401.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 6.8819 174.80MM
Cutter Dia 0.3740 9.50MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 4.5670 116.00MM
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Tool Material Steel
Cut Dia Min 0.3740 9.50MM
Dia Deep 12.0XD
Included Angle 136°
Cut Dia Max 0.3898 9.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
