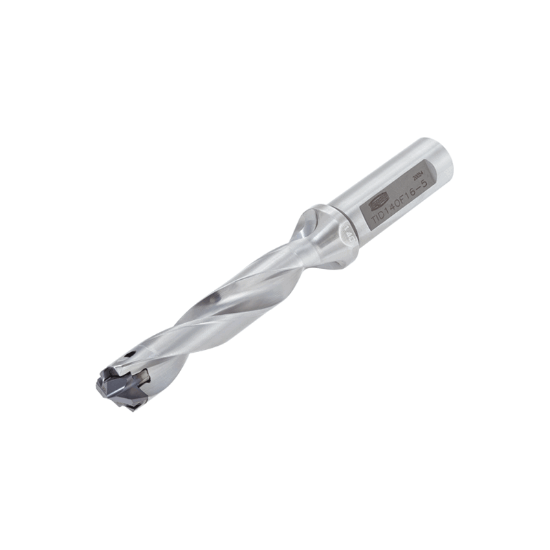

Picture of TUNGALOY TID095F12-5 9.5mm Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TID095F12-5 9.5mm Drill Meister Indexable head Drill with flanged Shank

ISO: TID095F12-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751958
Delivery date: 3-5 days
$299.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Insert Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Max 0.3898 9.90MM
Dia Deep 5.0XD
Flute Length 1.9690 50.01MM
Cutter Dia 0.3740 9.50MM
Cut Dia Min 0.3740 9.50MM
Included Angle 136°
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Overall Len 4.2638 108.30MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
