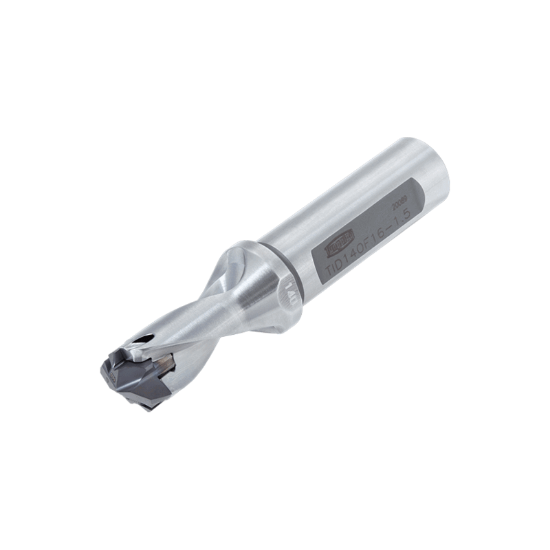

Picture of TUNGALOY TID075F12-1.5 7.5mm Drill Meister Indexable head Drill with flanged Shank

TUNGALOY TID075F12-1.5 7.5mm Drill Meister Indexable head Drill with flanged Shank

ISO: TID075F12-1.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751938
Delivery date: 3-5 days
$226.50

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 0.2953 7.50MM
Flute Length 0.5120 13.00MM
Cut Dia Max 0.3110 7.90MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Flutes/Inserts 2
Dia Deep 1.5XD
Cut Dia Min 0.2953 7.50MM - M
Included Angle 136°
Machine Side Connection Size 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 2.7913 70.90MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Medical Yes
Energy Yes
Agricultural YES
