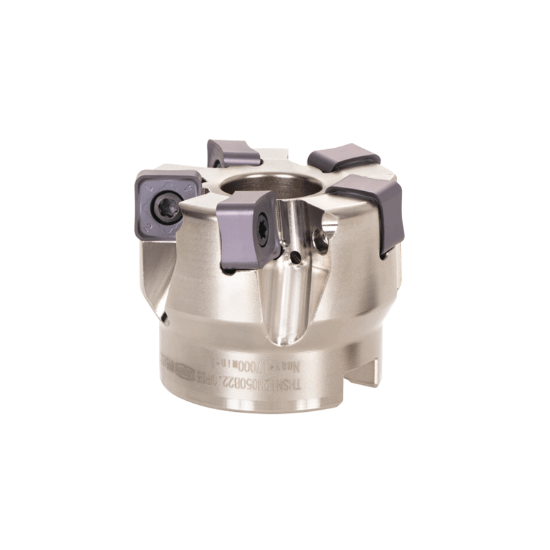

Picture of TUNGALOY THSN12U3.00B1.00R05 Milling Cutter 88.0° 3.000 Cutter Diameter Shell Arbor 1.0000 5 Flute

TUNGALOY THSN12U3.00B1.00R05 Milling Cutter 88.0° 3.000 Cutter Diameter Shell Arbor 1.0000 5 Flute

ANSI: THSN12U3.00B1.00R05

ISO: THSN12U3.00B1.00R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781897
Delivery date: 3-5 days
$768.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling
Dimensional Specifications
Insert Size Ic 12
Tool Material Steel
Flutes/Inserts 5
Cutter Dia 3.0000 76.20MM
Cut Dia Max 3.0240 76.81MM
Depth Of Cut Max 0.3740
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6816783
