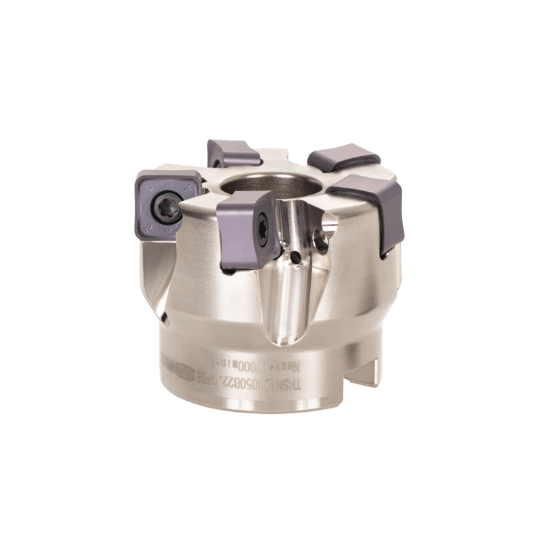

Picture of TUNGALOY THSN12U2.50B0.75R06 Milling Cutter 88.0° 2.500 Cutter Diameter Shell Arbor 0.7500 6 Flute

TUNGALOY THSN12U2.50B0.75R06 Milling Cutter 88.0° 2.500 Cutter Diameter Shell Arbor 0.7500 6 Flute

ANSI: THSN12U2.50B0.75R06

ISO: THSN12U2.50B0.75R06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781896
Delivery date: 3-5 days
$753.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 2.5240 64.11MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.5000 63.50MM - 2-1/2
Flutes/Inserts 6
Insert Size Ic 12
Depth Of Cut Max 0.3740
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
