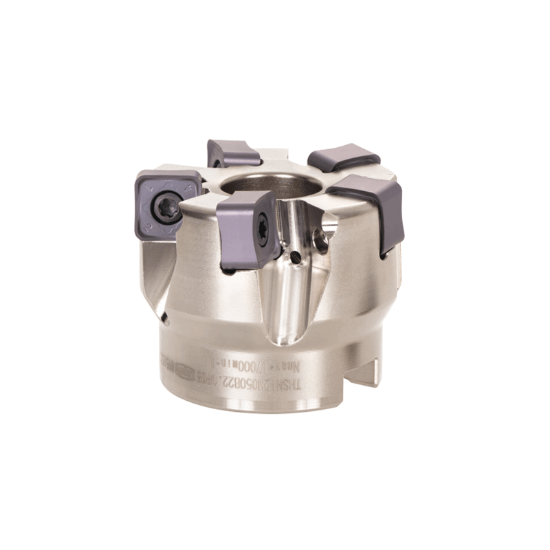

Picture of TUNGALOY THSN12U2.00B0.75R04 Milling Cutter 88.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

TUNGALOY THSN12U2.00B0.75R04 Milling Cutter 88.0° 2.000 Cutter Diameter Shell Arbor 0.7500 4 Flute

ANSI: THSN12U2.00B0.75R04

ISO: THSN12U2.00B0.75R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781893
Delivery date: 3-5 days
$613.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Face Milling
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3740
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Max 2.0240 51.41MM
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
