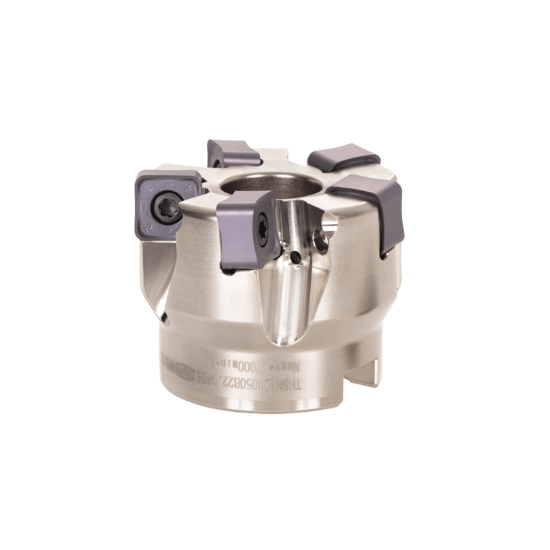

Picture of TUNGALOY THSN12M080B27.0R05 Milling Cutter 88.0° 3.150 Cutter Diameter Shell Arbor 0.6300 5 Flute

TUNGALOY THSN12M080B27.0R05 Milling Cutter 88.0° 3.150 Cutter Diameter Shell Arbor 0.6300 5 Flute

ANSI: THSN12M080B27.0R05

ISO: THSN12M080B27.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781886
Delivery date: 3-5 days
$744.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.3740
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 0.6299 16.00MM
Flutes/Inserts 5
Cut Dia Max 3.1730 80.59MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SN
Fasteners & Connectors
Insert Screw 6816783
