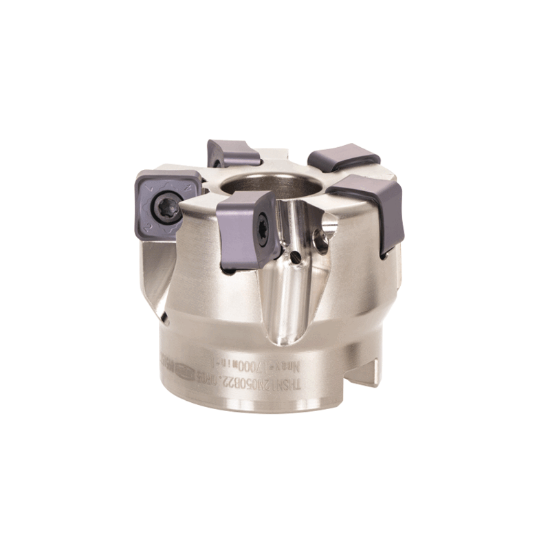

Picture of TUNGALOY THSN12M050B22.0R05 Milling Cutter 88.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

TUNGALOY THSN12M050B22.0R05 Milling Cutter 88.0° 1.967 Cutter Diameter Shell Arbor 0.8661 5 Flute

ANSI: THSN12M050B22.0R05

ISO: THSN12M050B22.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6777926
Delivery date: 3-5 days
$656.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.3740
Cutter Dia 1.9670 49.96MM
Cut Dia Max 1.9920 50.60MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Insert Size Ic 12
Cut Dia Min 1.9690 50.01MM
Cutting & Machining Properties
Insert Style SN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
