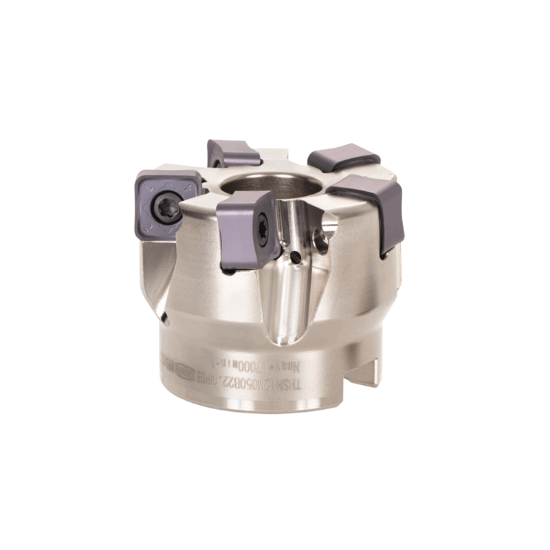

Picture of TUNGALOY THSN12J080B25.4R05 Milling Cutter 88.0° 3.150 Cutter Diameter Shell Arbor 1.0000 5 Flute

TUNGALOY THSN12J080B25.4R05 Milling Cutter 88.0° 3.150 Cutter Diameter Shell Arbor 1.0000 5 Flute

ANSI: THSN12J080B25.4R05

ISO: THSN12J080B25.4R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6781890
Delivery date: 3-5 days
$744.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cut Dia Max 3.1730 80.59MM
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12
Depth Of Cut Max 0.3740
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816783
