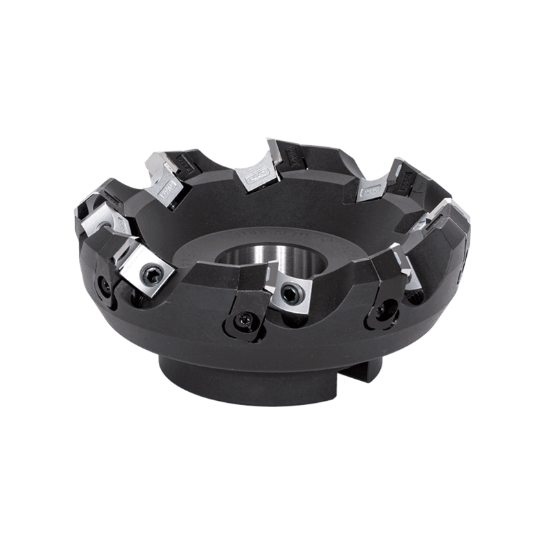

Picture of TUNGALOY THF4405RIA Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 8 Flute

TUNGALOY THF4405RIA Milling Cutter 45.0° 4.921 Cutter Diameter Shell Arbor 1.5000 8 Flute

ANSI: THF4405RIA

ISO: THF4405RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807986
Delivery date: 3-5 days
$1,064.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Cutter Dia 4.9210 124.99MM
Insert Size Ic 12
Cut Dia Min 4.9210 124.99MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 8
Cut Dia Max 5.3940 137.01MM
Depth Of Cut Max 0.1570
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Seat/Nest 6805115
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Hand R/L Right
Insert Style SF
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809849
