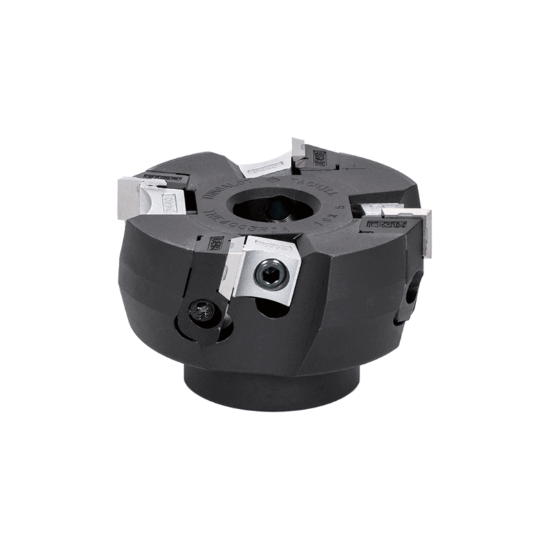

Picture of TUNGALOY THE4003RIA Milling Cutter 86.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

TUNGALOY THE4003RIA Milling Cutter 86.0° 3.150 Cutter Diameter Shell Arbor 1.0000 4 Flute

ANSI: THE4003RIA

ISO: THE4003RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807978
Delivery date: 3-5 days
$690.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 42
Depth Of Cut Max 0.2362
Cut Dia Max 3.1500 80.01MM
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Cut Dia Min 3.1500 80.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Seat/Nest 6805108
Insert Style SE
Hand R/L Right
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809849
