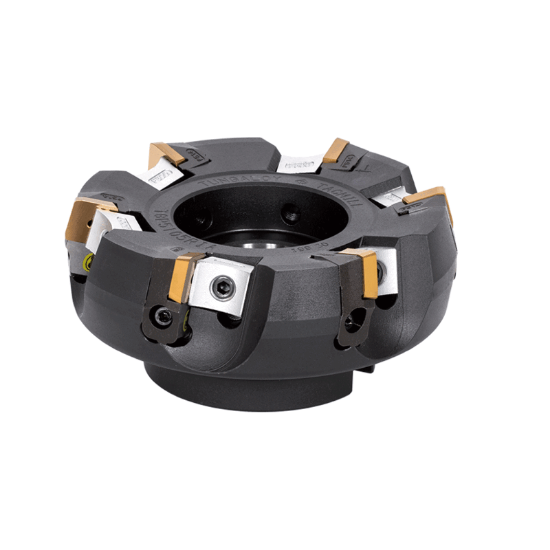

Picture of TUNGALOY TGP5108RIA Milling Cutter 75.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

TUNGALOY TGP5108RIA Milling Cutter 75.0° 7.874 Cutter Diameter Shell Arbor 1.8750 10 Flute

ANSI: TGP5108RIA

ISO: TGP5108RIA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807974
Delivery date: 3-5 days
$1,422.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 7.8740 200.00MM
Insert Size Ic 53
Cutter Dia 7.8740 200.00MM
Machine Side Connection Size 1.8750 47.63MM
Flutes/Inserts 10
Depth Of Cut Max 0.2362
Cut Dia Max 8.1500 207.01MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6805136
Insert Style SP
Fasteners & Connectors
Clamp Screw 6801818
Clamp/Wedge 6809567
